AC220V 1CH RF Wireless Mini Switch Relay Receiver Remote
  • Free Delivery
    On All the items
  • 99% Customers
    Feedbacks
  • 30 Days
    For Free Return
  • Payment
    Secure System
  • Only Best
    Brands
AC220V 1CH RF Wireless Mini Switch Relay Receiver Remote
AC220V 1CH RF Wireless Mini Switch Relay Receiver Remote
AC220V 1CH RF Wireless Mini Switch Relay Receiver Remote
AC220V 1CH RF Wireless Mini Switch Relay Receiver Remote
AC220V 1CH RF Wireless Mini Switch Relay Receiver Remote
AC220V 1CH RF Wireless Mini Switch Relay Receiver Remote
AC220V 1CH RF Wireless Mini Switch Relay Receiver Remote
AC220V 1CH RF Wireless Mini Switch Relay Receiver Remote
AC220V 1CH RF Wireless Mini Switch Relay Receiver Remote
AC220V 1CH RF Wireless Mini Switch Relay Receiver Remote
AC220V 1CH RF Wireless Mini Switch Relay Receiver Remote
AC220V 1CH RF Wireless Mini Switch Relay Receiver Remote
AC220V 1CH RF Wireless Mini Switch Relay Receiver Remote
AC220V 1CH RF Wireless Mini Switch Relay Receiver Remote
AC220V 1CH RF Wireless Mini Switch Relay Receiver Remote
AC220V 1CH RF Wireless Mini Switch Relay Receiver Remote

AC220V 1CH RF Wireless Mini Switch Relay Receiver Remote

Available: In Stock
$11.40USD $14.33USD
Color
A
B
C
D

Add to Wishlist
Model Number: KUKEAT-131;Brand Name: xuanlongyuan;Channel: 1;Support APP: No;Package: No;Use: Universal;Wireless Communication: RF;Frequency: 315MHz/433MHZ;channel : 1CH;working voltage : AC 220V;working frequency : 315MHz/433MHZ;receiver sensitivity : >-105dB;Coding type : Learning code;PCB size : 45*30*20mm;current : 10A;



1.Receiver

Working Voltage: AC220V (Input AC220V Output AC220V)

Max Current: 10A (have better lower than 7A )

Channel: 1CH

Working Frequency : 315MHZ/433.92MZH

Receiver sensitivity: : -105Db

Working temperature : -10'C - +60'C

Output way : Momentary. Toggle .Latched Adjustable

Code type: Learning code Add Controller by the Learning Button on the receiver



2.Function: (original setting is Toggle,if you want to change the function,weld by yourself.)



Momentary:Press the Transmitter button , the receiver relay is ON, release button; the receiver relay is OFF,

Toggle:Press transmitter button for 1 time , the receiver relay is ON, press button again, the receiver relay is OFF,

Latched:Press transmitter button A, the receiver relay is ON, Press the transmitter button B, the relay is OFF.



3.Learning Method:



Learn: input the 220V for the receiver,press the learning button until the LED indicator ON.Then press the transmitter ,the indicator flash fast,it means learning successfully.

Remove:keep pressing the learning button on the receiver aboout 10 seconds until the indicator ON and flash fast,it means the codes is cleared successfully.

Note:  433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency

pacote inclued:

A:

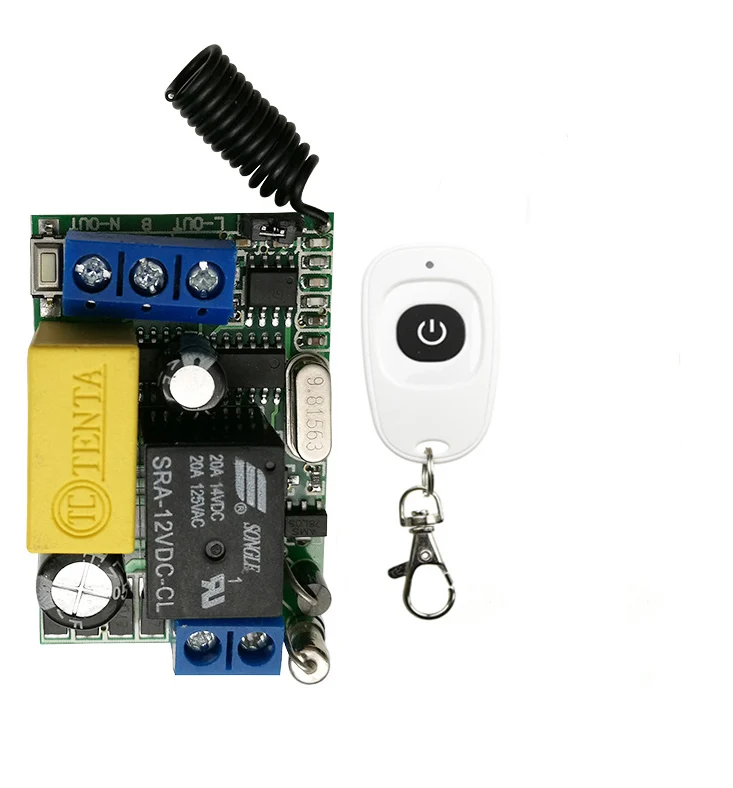

1 x Receiver(with cover)

1 x Transmitter(with battery)
B:

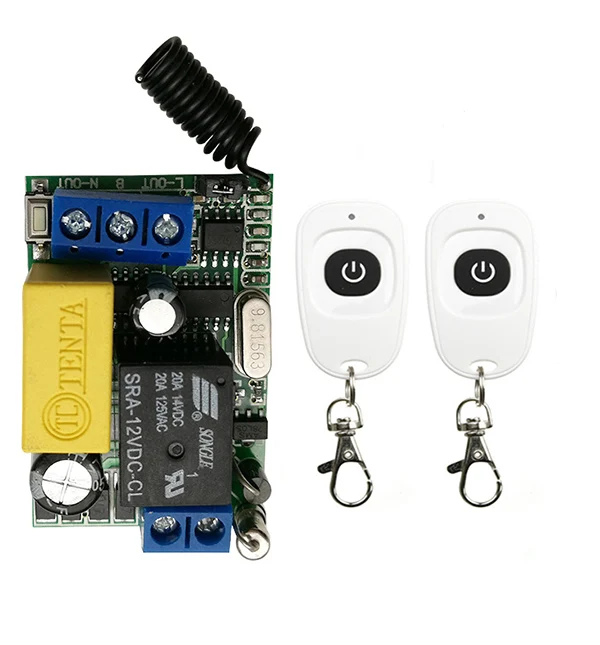

1x Receiver(with cover)
2 x Transmitter(with battery)
C:
1 x Receiver(with cover)
3 x Transmitter(with battery)
D:

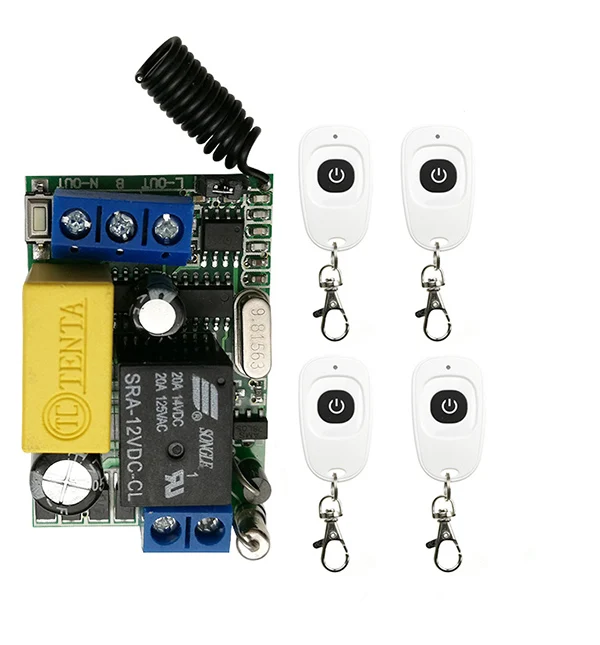

1 x Receiver(with cover)

4 x Transmitter(with battery)

                                                            20-120-220-320-4





               4-14-24-54-34-4

Model Number: KUKEAT-131;Brand Name: xuanlongyuan;Channel: 1;Support APP: No;Package: No;Use: Universal;Wireless Communication: RF;Frequency: 315MHz/433MHZ;channel : 1CH;working voltage : AC 220V;working frequency : 315MHz/433MHZ;receiver sensitivity : >-105dB;Coding type : Learning code;PCB size : 45*30*20mm;current : 10A;



1.Receiver

Working Voltage: AC220V (Input AC220V Output AC220V)

Max Current: 10A (have better lower than 7A )

Channel: 1CH

Working Frequency : 315MHZ/433.92MZH

Receiver sensitivity: : -105Db

Working temperature : -10'C - +60'C

Output way : Momentary. Toggle .Latched Adjustable

Code type: Learning code Add Controller by the Learning Button on the receiver



2.Function: (original setting is Toggle,if you want to change the function,weld by yourself.)



Momentary:Press the Transmitter button , the receiver relay is ON, release button; the receiver relay is OFF,

Toggle:Press transmitter button for 1 time , the receiver relay is ON, press button again, the receiver relay is OFF,

Latched:Press transmitter button A, the receiver relay is ON, Press the transmitter button B, the relay is OFF.



3.Learning Method:



Learn: input the 220V for the receiver,press the learning button until the LED indicator ON.Then press the transmitter ,the indicator flash fast,it means learning successfully.

Remove:keep pressing the learning button on the receiver aboout 10 seconds until the indicator ON and flash fast,it means the codes is cleared successfully.

Note:  433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency

pacote inclued:

A:

1 x Receiver(with cover)

1 x Transmitter(with battery) B: 1x Receiver(with cover) 2 x Transmitter(with battery) C: 1 x Receiver(with cover) 3 x Transmitter(with battery)     D: 1 x Receiver(with cover)

4 x Transmitter(with battery)

                                                            20-120-220-320-4



               4-14-24-54-34-4
